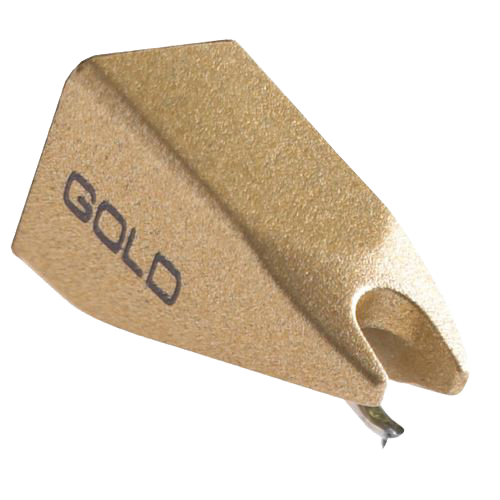

Ortofon Concorde Stylus Gold

Gold Replacement stylus Perfect for usage in discotheques and clubs: provides the best possible sound quality available in a DJ cartridge! Designed to commemorate the release of the limited edition Technics SL-1200LTD and SL-1200GLD, the Concorde Gold was made to compliment the attractive stylings of these limited edition turntables and to provide the best possible sound quality available in a DJ cartridge. Compatible to a very wide range of turntables. Using the cartridge for the first time feels like striking gold. It is indeed the flagship product with its gold plating and special Pro E diamond. The Gold enjoys an excellent reputation for its amazing sound quality. Available only with an elliptical stylus, the Concorde Gold is for DJs who will settle for nothing but the very best! Gold Stylus Technical data: • Output voltage at 1000Hz, 5cm/sec. - 6 mV • Channel balance at 1kHz - 1,5 dB • Channel separation at 1kHz - 23 dB • Channel separation at 15 kHz - 15 dB • Frequency range at -3dB - 20-22.000 Hz • Frequency response - 20-20.000 Hz +/- 2dB • Tracking ability at 315 Hz at recommmende tracking force - 80 ?m • Compliance, dynamic lateral - 7 ?m/m N • Stylus type - Special Elliptical • Stylus tip radius - r/R 13/25 ?m • Tracking force range - 2,0-5,0 g (20-50 mN) • Tracking force recommended - 3,0 g (30 mN) • Tracking angle - 20° • Internal impedance, DC resistance - 750 Ohm • Internal inductance - 450 mH • Recommended load resistance - 47 kOhm • Recommended load capacitance - 200-600 pF • Cartridge weight - 18,5 g Compatible with cartridges - Gold
