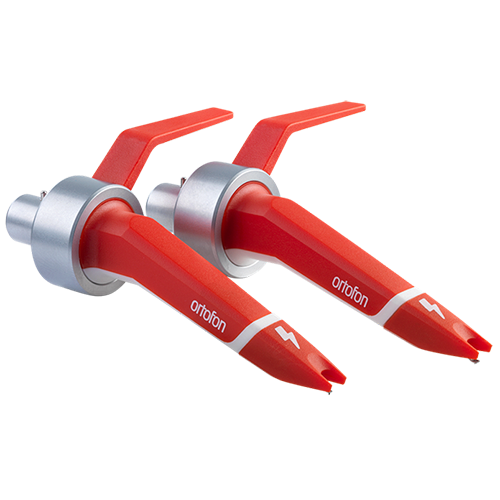

Ortofon Concorde Digital MKII (Twin)

Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding • At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl. • This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal. • Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer. Output voltage at 1000Hz, 5cm/sec. - 10 mV Channel balance at 1kHz - 1 dB Channel separation at 1kHz - 22 dB Channel separation at 15 kHz - 15 dB Frequency range at -3dB - 20-18.000 Hz Tracking ability at 315 Hz at recommmended tracking force - 100 ?m Compliance, dynamic lateral - 14 ?m/m N Stylus type - Spherical R 18 ?m Tracking force range - 3 - 5 g Tracking force recommended - 4 g Cartridge weight - 18,5 g Replacement stylus unit - DIGITAL
